타나베 공기 압축기 (Tanabe Air Compressor)

By: 염호섭

Date:

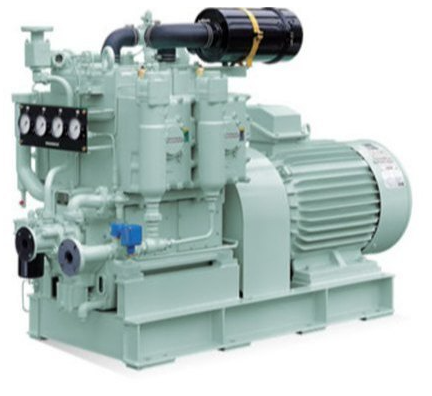

타나베 공기 압축기 (Tanabe Air Compressor) 란?

1. 타나베 공기 압축기 (Tanabe Air Compressor) 란?

공기 압축기란 선박에 사용하는 기계로
공기를 압축하여 탱크에 저장하는 기계입니다.
이렇게 만든 압축공기는 선박 엔진 시동이나 각종 기계 시동과 청소나 페인트 도장등의
많은 곳에 사용하게 됩니다.

공기 압축기를 생산하는 곳은 전세계 적으로 많이 있습니다.
일제 타나베 제품도 대한민국 선박에서 많이 사용하는 제품입니다.
이 제품은 한국에서 생산이 가능한 모델 입니다.

2. 취급 모델

일제 타나베 (Tanabe) 제품은 거의 모든 모델 생산 가능합니다.
이곳에선 가장 많이 사용하는 모델인 H-64 와 H-74 모델을
소개 합니다.

타나베 공기 압축기 (Tanabe Air Compressor)

2-1 타나베 공기 압축기 부품 코드표

Model No.Part No.Descripition
H-64S4-8424-1CRANK CASE
H-64S4-8424-2BEARING COVER (F)
H-64S4-8424-3BEARING COVER (R)
H-64S4-8424-5OIL SEAL
H-64S4-8424-7SLIP RING
H-64S4-8424-8SIDE COVER (A)
H-64S4-8424-9SIDE COVER (B)
H-64S4-8424-10OIL LEVEL GAUGE
H-64S4-8424-11BREATHER CAP
H-64S4-8424-12OIL SCREEN ASSY. SO-530
H-64S4-8424-12AOIL SCREEN (ELEMENT ONLY) ASSY SO-530
H-64S4-8424-14GEAR CASE
H-64S4-8424-15-1GUIDE RING A (WITW C.W. PUMP)
H-64S4-8424-15-2GUIDE RING B
H-64S4-8424-16-1DRIVE GEAR (C.W PUMP GEAR) 1800 RPM
H-64S4-8424-16-2DRIVE GEAR (C.W PUMP GEAR) 1200 RPM
H-64S4-8424-17-1IDLE GEAR (C.W PUMP GEAR) 1800RPM
H-64S4-8424-17-2IDLE GEAR (C.W PUMP GEAR) 1200RPM
H-64S4-8424-18OIL PUMP CASE
H-64S4-8424-19OIL PUMP CASE
H-64S4-8424-20OIL PUMP COUPLING
H-64S4-8424-21OIL RELEASE VALVE BODY
H-64S4-8424-22OIL RELEASE ASSY. VO520
H-64S4-8424-23OIL SAFETY VALVE ASSY. VSO400
H-64S4-8424-24-1LUBRICATOR ASSY LM-2100
H-64S4-8424-24-2LUBRICATOR ASSY LM-2300
H-64S4-8424-25-1CRANK SHAFT
H-64S4-8424-25-2CRANK SHAFT
H-64S4-8424-25-3CRANK SHAFT
H-64S4-8424-26MAIN BEARING
H-64S4-8424-28CRANK BOLT
H-64S4-8424-29CRANK WAHSER
H-64S4-8424-30CRANK KEY
H-64S4-8424-31-1BALANCE WEIGHT (H-63)
H-64S4-8424-31-2BALANCE WEIGHT (H-64)
H-64S4-8424-31-3BALANE WEIGHT (H-264)
H-64S4-8424-32BALANCE WEIGHT BOLT
H-64S4-8424-33CONNECTING ROD
H-64S4-8424-34CON ROD BEARING (A)
H-64S4-8424-35CON ROD BEARING (B)
H-64S4-8424-36PISTON PIN BUSHING
H-64S4-8424-37CON ROD BOLT & NUT
H-64S4-8424-41-1PISTON
H-64S4-8424-41-2PISTON
H-64S4-8424-42PISTON RING
H-64S4-8424-43PISTON RING
H-64S4-8424-44OIL SCRAPER RING
H-64S4-8424-45CYLINDER
H-64S4-8424-46OIL CHECK ASSY. VCO-130
H-64S4-8424-47CYLINDER HEAD
H-64S4-8424-48VALVE ASSY
H-64S4-8424-50SUCTION VALVE
H-64S4-8424-51DELIVERY VALVE ASSY
H-64S4-8424-53VALVE FLANGE
H-64S4-8424-54VALVE SET BOLT & NUT
H-64S4-8424-55VALVE SET SPRING
H-64S4-8424-56VALVE SET SPRING RETAINER
H-64S4-8424-57VALVE SET SPRING RETAINER
H-64S4-8424-58RETAINING RING-C TYPE
H-64S4-8424-59COOLER COVER
H-64S4-8424-61COOLER PIPE
H-64S4-8424-62COOLER COVER
H-64S4-8424-63COOLER PIPE
H-64S4-8424-64DRAIN SEPARATOR ASSY
H-64S4-8424-65SUCTION FILTER ASSY
H-64S4-8424-65-1SUCTION FILTER (FILTER ONLY)
H-64S4-8424-66SAFETY VALVE (1ST. STAGE) 7-8.5KG
H-64S4-8424-67SAFTEY VALVE (2ND. STAGE) RGX-S3/4B
H-64S4-8424-69-1COOLING WATER PUMP ASSY PWC-20A
H-64S4-8424-69-2COOLING WATER PUMP ASSY PWC-32A
H-64S4-8424-71CYLINDER HEAD GASKET
H-64S4-8424-72AGASKET (SIDE COVER)
H-64S4-8424-72BGASKET (SIDE COVER)
H-64S4-8424-73GASKET
H-64S4-8424-74GASKET
H-64S4-8424-75GASKET
H-64MT-00076-6-1-15WATER CHECKER 25A
H-64MT-00076-6-1-14MAGNETIC VALVE MRCA-103 (110V/220V 확인요)
H-64MT-00076-6-1-13AUTO DRAIN TRAP
H-64MT-00076-6-7PRESURE GAUGE
H-64MT-00076-6-8PRESURE GAUGE
H-64MT-00076-6-9PRESURE GAUGE
H-64MT-00076-6-10PRESURE GAUGE
H-64MT-00076-6-22CHECK VALVE (DRAIN)
H-64A3-6109-1VALVE SEAT GASKET
H-64A3-6109-2VALVE PLATE
H-64A3-6109-3VALVE SPRING
H-64A3-6109-4VALVE CLAMPING BOLT
H-64A3-6109-5VALVE CLAMPING BOLT
H-64A3-6109-6VALVE CLAMPING NUT
H-64A3-6109-7WASHER
H-64A3-6109-8VALVE SEAT
H-64A3-6109-9VALVE GUARD
H-64A3-6109-10GUIDE RING
H-64A3-6109-11VALVE SEAT
H-64A3-6109-12VALVE GUARD
H-64A3-6109-13GUIDE RING
H-64A3-6109-14SPRING PIN
H-64A3-6109-50SUCTION VALVE ASSY.
H-64A3-6109-51DELIVERY VALVE ASSY
H-64A3-4010-1BOLT
H-64A3-4010-2NUT
H-64A3-4010-3VALVE SEAT
H-64A3-4010-4VALVE GUARD
H-64A3-4010-5VALVE PLATE
H-64A3-4010-6VALVE PLATE
H-64A3-4010-7VALVE PLATE
H-64A3-4010-8VALVE SPRING
H-64A3-4010-9VALVE SPRING
H-64A3-4010-10VALVE SPRING
H-64A3-4010-11PARALLEL PIN
H-64A3-4010-12VALVE GUARD
H-64A3-4010-13VALVE PLATE
H-64A3-4010-14VALVE PLATE
H-64A3-4010-15VALVE SPRING
H-64A3-4010-16VALVE SPRING
H-64A3-4010-17SCREW
H-64A3-4010-18GUIDE RING
H-64A3-4010-19VALVE SEAT GASKET
H-64A3-4010-20VALVE SEAT GASKET
H-74S4-8422-1CRANK CASE
H-74S4-8422-2BEARING COVER (F)
H-74S4-8422-3BEARING COVER (R)
H-74S4-8422-5OIL SEAL
H-74S4-8422-7SLIP RING
H-74S4-8422-8SIDE COVER (A)
H-74S4-8422-9SIDE COVER (B)
H-74S4-8422-10OIL LEVEL GAUGE
H-74S4-8422-11BREATHER CAP
H-74S4-8422-12OIL SCREEN ASSY
H-74S4-8422-12-1OIL SCREEN ASSY (ELEMET ONLY)
H-74S4-8422-14GEAR CASE
H-74S4-8422-15-1GUDIE RING A
H-74S4-8422-15-2GUIDE RING B
H-74S4-8422-16-1DRIVE GEAR (C.W PUMP GEAR) 1800RPM
H-74S4-8422-16-2DRIVE GEAR (C.W PUMP GEAR) 1200RPM
H-74S4-8422-17-1IDLE GEAR (C.W PUMP GEAR) 1800RPM
H-74S4-8422-17-2IDLE GEAR (C.W PUMP GEAR) 1200RPM
H-74S4-8422-18-1OIL PUMP CASE
H-74S4-8422-19OIL PUMP GEAR
H-74S4-8422-20OIL PUMP COUPLING
H-74S4-8422-21OIL RELEASE VALVE BODY
H-74S4-8422-22OIL RELEASE VALVE ASSY. VO-520
H-74S4-8422-23OIL SAFETY VALVE ASSY. VSO-400
H-74S4-8422-24LUBRICATOR ASSY LM-2210
H-74S4-8422-24-2LUBRICATOR ASSY LM-2300
H-74S4-8422-25-1CRANK SHAFT
H-74S4-8422-25-2CRANK SHAFT
H-74S4-8422-25-3CRANK SHAFT
H-74S4-8422-25-4CRANK SHFAT
H-74S4-8422-26MAIN BEARING
H-74S4-8422-27MIDDLE MAIN BEARING
H-74S4-8422-31-1BALANCE WEIGHT
H-74S4-8422-31-2BALANCE WEIGHT
H-74S4-8422-31-3BALANCE WEIGHT
H-74S4-8422-32BALANVE WEIGHT BOLT
H-74S4-8422-33CONNECTING ROD
H-74S4-8422-34CONN. ROD BEARING (A)
H-74S4-8422-35CONN. ROD BEARING (B)
H-74S4-8422-36PISTON PIN BUSHING
H-74S4-8422-37CONN. ROD BOLT&NUT
H-74S4-8422-38PISTON PIN
H-74S4-8422-39SEAL DESK
H-74S4-8422-41-1PISTON
H-74S4-8422-41-2PISTON
H-74S4-8422-42PISTON RING
H-74S4-8422-43PISTON RING
H-74S4-8422-44PISTON RING
H-74S4-8422-45CYLINDER
H-74S4-8422-46OIL CHECK ASSY.
H-74S4-8422-47CYLINDER HEAD
H-74S4-8422-48VALVE ASSY.
H-74S4-8422-50SUCTION VALVE ASSY.
H-74S4-8422-51DELIVERY VALVE ASSY.
H-74S4-8422-52VALVE RETAINER
H-74S4-8422-53VALVE FLANGE
H-74S4-8422-54VALVE SEAT BOLT & NUT
H-74S4-8422-55VALVE SET SPRING
H-74S4-8422-56VALVE SET SPRING RETAINER
H-74S4-8422-57VALVE SET SPRING RETAINER
H-74S4-8422-59COOLER COVER
H-74S4-8422-60COOLER PLATE
H-74S4-8422-61COOLER PIPE
H-74S4-8422-62COOLER COVER
H-74S4-8422-63COOLER PIPE
H-74S4-8422-64DRAIN SEPARATOR ASSY.
H-74S4-8422-65SUCTION FILTER ASSY
H-74S4-8422-65SUCTION FILTER ASSY F-4150 (REQUIRED ONLY FILTER)
H-74S4-8422-66SAFETY VALVE (1ST. STAGE) VS-11000A
H-74S4-8422-67SAFETY VALVE (2ND. STAGE) 32K
H-74S4-8422-69-2COOLING WATER PUMP ASSY PWC-32A
H-74S4-8422-71CYL. HEAD GASKET
H-74S4-8422-72AGASKET (SIDE COVER)
H-74S4-8422-72BGASKET (SIDE COVER)
H-74S4-8422-73GASKET (1ST. STAGE COOLER COVER)
H-74S4-8422-74GASKET (2ND. STAGE COOLER COVER)
H-74S4-8422-75GASKET (COOLER PLATE)
H-74MT-000076-6-2OIL FILTER
H-74MT-000076-6-3SUCTION FILTER
H-74MT-000076-6-4SAFETY VALVE
H-74MT-000076-6-5SAFETY VALVE
H-74MT-000076-6-6SAFETY VALVE
H-74MT-000076-6-7PRESSURE GAUGE
H-74MT-000076-6-8PRESSURE GAUGE
H-74MT-000076-6-9PRESSURE GAUGE
H-74MT-000076-6-10PRESSURE GAUGE
H-74MT-000076-6-11LO. LOW PRESS. SWITCH (LS)
H-74MT-000076-6-12AIR HIG TEMP. SWITCH (TS)
H-74MT-000076-6-12-1C.W HIGH TEMP. SWITCH (TS2)
H-74MT-000076-6-13AUTO DRAIN TRAP
H-74MT-000076-6-14MAGNETIC VALVE (MV)
H-74MT-000076-6-15WATER CHECKER
H-74MT-000076-6-17CHECK VALVE (AIR)
H-74MT-000076-6-19C.W SHUT-OFF VALVE (SV)
H-74MT-000076-6-21FLEXIBLE MOUNTING (VNM-C-750)
H-74A407306090VALVE COMPLETE
H-74A407906002DISCHARGE SEAT
H-74A470306003STUD
H-74A407306005BUSH
H-74A407306006SUCTION PLATE
H-74A407306007SUCTION PLATE SPRING
H-74A40730600BAPIN
H-74A407306009-9INTERNAL DISCHARGE RING
H-74A407306011INTERNAL DISCHARGE SPRING
H-74A407306012EXTERNAL DISCHARGE SPRING
H-74A407306013PIN
H-74A407306014SUCTION SEAT
H-74A407306015NUT
H-74A4073015141ST VALVE SEAT GASKET
H-74G040131200-AO-RING
H-74G030406012-GSPRING PIN
H-74A407306017O-RING
H-74TAB10873-1DISCHARGE SEAT ASSEMBLY
H-74TAB10873-2DISCHARGE SEAT
H-74TAB10873-3STUD
H-74TAB10873-4PIN
H-74TAB10873-5BUSH
H-74TAB10873-6SUCTION PLATE
H-74TAB10873-7SUCTION PLATE SPRING
H-74TAB10873-8PIN
H-74TAB10873-9INTERNAL DISCHARGE RING
H-74TAB10873-10EXTERNAL DISCHARGE RING
H-74TAB10873-11INTERNAL DISCHARGE SPRING
H-74TAB10873-12EXTERNAL DISCHARGE SPRING
H-74TAB10873-13PIN
H-74TAB10873-14SUCTION SEAT
H-74TAB10873-15NUT
H-74TAB10873-16O-RING
H-74A3-17780-1VALVE SEAT GASKET
H-74A3-17780-2VALVE CLAMPING BOLT
H-74A3-17780-3VALVE CLAMPING NUT
H-74A3-17780-4WASHER
H-74A3-17780-5VALVE SEAT
H-74A3-17780-6VALVE PALTE
H-74A3-17780-7VALVE SPRING
H-74A3-17780-8LIFT WASHER
H-74A3-17780-9LOCATING PIN
H-74A3-17780-10VALVE GUARD
H-74A3-17780-11VALVE CLAMPING BOLT
H-74A3-17780-12VALVE SEAT
H-74A3-17780-13LIFT WASHER
H-74A3-17780-14LOCATING PIN
H-74A3-17780-15VALVE GUARD
H-74A3-17780-16LOCKING DEVICE
H-74A3-6111-1VALVE SEAT GASKET
H-74A3-6111-2VALVE PALTE
H-74A3-6111-3VALVE SPRING
H-74A3-6111-4VALVE SPRING
H-74A3-6111-5VALVE CLAMPING BOLT
H-74A3-6111-6VALVE CLAMPING BOLT
H-74A3-6111-7VALVE CLAMPING NUT
H-74A3-6111-8WASHER
H-74A3-6111-9VALVE SEAT
H-74A3-6111-10VALVE GUARD
H-74A3-6111-11VALVE SEAT
H-74A3-6111-12VALVE GUARD
H-74A3-6111-13LIFT WASHER
H-74A3-6111-14LIFT WASHER
H-74A3-6111-15SPRING PIN
H-74A3-6111-16SPRING PIN
H-74A3-6111-17PARALLEL PIN
H-74A3-6111-18SUCTION VALVE
H-74A3-6111-19DELIVERY VALVE
H-74TAB10875-1SEAT ASSEMBLY
H-74TAB10875-2STUD
H-74TAB10875-3SEAT BOLT
H-74TAB10875-4NUT
H-74TAB10875-5INTERNAL RING
H-74TAB10875-6CENTRAL RING
H-74TAB10875-7EXTERNAL RING
H-74TAB10875-8INTERNAL SPRING
H-74TAB10875-9CENTRAL SPRING
H-74TAB10875-10EXTERNAL SPRING
H-74TAB10875-11PIN
H-74TAB10875-12GUARD
H-74TAB10875-13PIN
H-74TAB10875-14WASHER
H-74TAB10875-15VALVE SEAT GASKET
H-74A407306190SUCTION VALVE COMPLETE
H-74A407306102STUD
H-74A407306103GUARD
H-74A407306104NUT
H-74A407306105INTERNAL RING
H-74A407306106CENTRAL RING
H-74A407306107EXTERNAL RING
H-74A406306107INTERNAL SPRING
H-74A406306108CENTRAL SPRING
H-74A407306110EXTERNAL SPRING
H-74A407306112SEAT
H-74A406306111APIN
H-74A407306114WASHER
H-74G100115907VALVE SEAT GASKET
H-74A407306290DELIVERY VALVE COMPLETE
H-74A407306202STUD
H-74A407306203SEAT
H-74A407306104NUT
H-74A406306105-5INTERNAL RING
H-74A406306106CENTRAL RING
H-74A406306107-8INTERNAL SPRING
H-74A407306212GUARD
H-74A406306111PIN DISCHARGE VALVE
H-74A407306114WASHER DISCHARGE VALVE
H-74TAB10874-1/3GUARD ASSEMBLY
H-74TAB10874-2STUD
H-74TAB10874-3GUARD
H-74TAB10874-4NUT
H-74TAB10874-5INTERNAL RING
H-74TAB10874-6CENTRAL RING
H-74TAB10874-7EXTERNAL RING
H-74TAB10874-8INTERNAL SPRING
H-74TAB10874-9CENTRAL SPRING
H-74TAB10874-10EXTERNAL SPRING
H-74TAB10874-11PIN
H-74TAB10874-12SEAT
H-74TAB10874-13PIN
H-74TAB10874-14WASHER
H-74TAB10874-15VALVE SEAT GASKET
H-74A407306090VALVE COMPLETE
H-74A407306002DISCHARGE SEAT
H-74A470306003STUD SPM14S01
H-74A407306008APIN
H-74G40131200-AO-RING
H-74G030406012-GO-RING
H-74A3-4010-1BOLT
H-74A3-4010-2NUT
H-74A3-4010-3VALVE SEAT
H-74A3-4010-4VALVE GUARD
H-74A3-4010-5VALVE PLATE
H-74A3-4010-6VALVE PLATE
H-74A3-4010-7VALVE PLATE
H-74A3-4010-8VALVE SPRING
H-74A3-4010-9VALVE SPRING
H-74A3-4010-10VALVE SPRING
H-74A3-4010-11PARALLEL PIN
H-74A3-4010-12VALVE GUARD
H-74A3-4010-13VALVE PLATE
H-74A3-4010-14VALVE PLATE
H-74A3-4010-15VALVE SPRING
H-74A3-4010-16VALVE SPRING
H-74A3-4010-17SCREW
H-74A3-4010-18GUIDE RING
H-74A3-4010-19VALVE SEAT GASKET
H-74A3-4010-20VALVE SEAT GASKET
H-74S4-8424-48VALVE ASSY

3. 제조

원 제작자는 일본 타나베 (Tanabe) 이지만
타나베와는 전혀 상관없는 대한민국 생산공장에서 100% 호환되는 제품을 생산을 하고 있습니다.
일제 타나베 제품을 가지고 있는 선박에서도 전혀 문제없이 부품 교환등의 사용이 가능합니다.
부품뿐이 아니라 공기 압축기 (에어 컴프레셔) 완제품도 생산이 가능합니다.

4. 주문 방법

2026-09-03일 수정함.

처음엔 가격을 올려 놓았지만, 워낙 가격 변동이 많아 생기므로
일일이 수정이 불가능해 졌습니다.

해서 지금은 부품의 명칭만 참조하시게 만들어 놓았습니다.

각 부품의 구입이 필요하신 분은 스페이스 마린으로 연락주시면 견적서 만들어 보내드리겠습니다.

이전 글
구형 스페이스마린 홈페이지에서 검색하는 방법
다음 글
미스비시 유청정기 (Mitsubishi Purifier SJ-G type)

이어지는 관련 글

선용품의 정보와 참고

관통추 (정치망추)

관통 추 (정치망 추) 관통추 (정치망추) 는 주로 어업 현장에서 그물을 수중의 특정 위치에 고정하거나, 조류에 휩쓸리지 않도록 무게 중심을...
선용품의 정보와 참고

삼각판 (Delta Plate) – 선박 갑판 의장품

삼각판 삼각판은 리깅(Rigging) 및 인양 현장에서 두 개 이상의 라인을 하나로 모으거나, 하중을 분산시킬 때 사용하는 삼각형 모양의 연결...
선용품의 정보와 참고

와이어로프 소켓 (Wire Rope Socket)

1. 와이어로프 소켓 (Wire Rope Socket) 와이어로프 소켓 (Wire Rope Socket) 이란 와이어 로프의 끝부분에 단단히 장착하여 와이어로프를 다른 구조물이나...
선용품의 정보와 참고

레일 클램프 (Rail Clamp ) – 선박 갑판 의장품

1. 레일 클램프 (Rail Clamp ) 레일 클램프 란 기차 레일을 고정하는 역활을 합니다. 기차 레일 외에도 여러가지 물체를 고정하는...
